MS-XD-0604
$397.00 & Without Shipping
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
|
CMRR
|
≥ 100dB, with AC Filter
|
Calibrating voltage
|
1mV± 3%
|
|
Input circuit
|
Floating
|
Voltage tolerance
|
± 500mV
|
|
Input circuit current
|
≤ 0.1µ A
|
Time constant
|
> 3.2s
|
|
Resolution
|
12bit/1000Hz
|
Frequent response
|
0.05Hz~150Hz
|
|
Operation mode
|
Manual/Auto
|
Noise level
|
≤ 15µ Vp-p
|
|
Filter
|
AC. EMG Filter
|
Threshold
|
≤ 20µ V
|
|
Drift filter
|
Anti-Drift System
|
Paper speed
|
12.5, 25, 50mm/s (± 3%)
|
|
Input Impedance
|
> 50MΩ
|
Sensitivity
|
5 ，10 ，20mm/mV
|
|
Patient current leakage
|
< 10µ A
|
Recorder
|
High resolution thermal printer
|
|
Specification of fuse
|
T1.6A 250V Ø5×20
|
Battery
|
Built-in rechargeable Li-ion battery 11.1V(2200mAh)
|
|
Recording paper
|
Thermal recording paper
|
Package
|
295mm*205mm*73mm
|

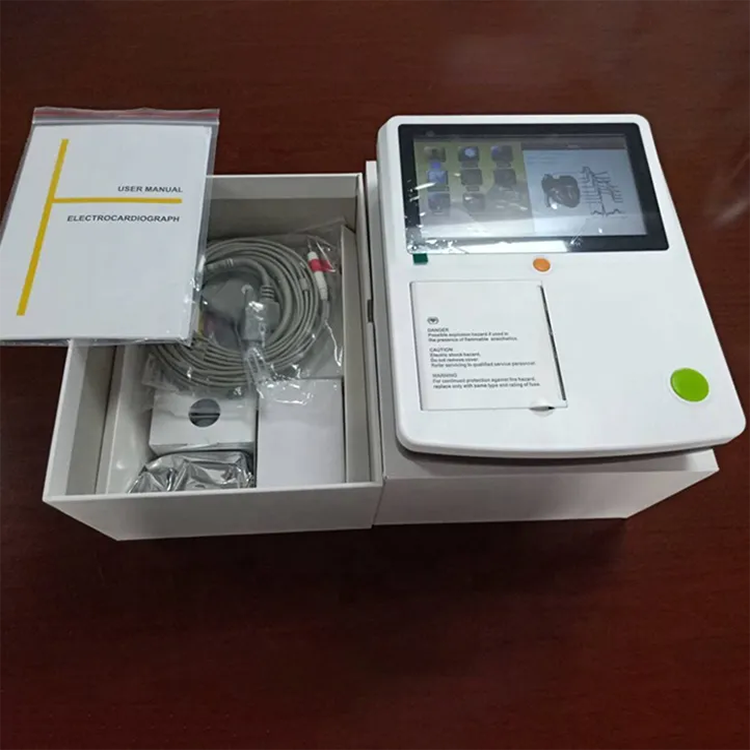

Function Features of ECG Machine
Modern in design, light in weight, compact in size.
Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.
7” color touch screen.
Sensitive filters of ADS, HUM, and EMG.
Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency.
Automatic adjustment of baseline for optimal recording.
Thermal printer with 112mm print paper, synchronization print.
Lead off & lack off paper detection function.
Built-in rechargeable li-ion battery (11.1V/2200mAh), AC/DC power conversion.
Adapt to 100-240V, 50/60Hz AC power supply
Historical data and patient’s information can be reviewed and printed.
Support USB flash disk memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.
The machine can store over 400 ECG reports in its built-in flash.
Sleep mode to save energy and extend LCD life
The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark includes: lead sign, sensitivity, paper speed, filter state, etc
Unit Package
350mm*175mm*250mm
Gross Weight: 3Kg
